ANSI B16.5 Class 900 Flanges Manufacturer and Supplier In Manila, Philippines

Ting Flanges, located in Manila, Philippines, stands out as a top manufacturer and supplier of ANSI B16.5 Class 900 Flanges. They’re well-regarded for their precision engineering and durability, especially when it comes to handling extreme pressure and temperature conditions. These flanges are crafted to meet strict industrial standards, ensuring that connections in critical piping systems are both secure and leak-proof. Using high-quality materials and cutting-edge technology, Ting Flanges’ products boast impressive dimensional accuracy and resistance to corrosion. Trusted across various industries, their ANSI B16.5 Class 900 Flanges are known for delivering outstanding performance, reliability, and a long service life, even in the toughest operational environments.

Raised Face Class 900 Flanges Philippines, 900 LBS Flange United kingdom, ANSI B16.5 Class 900 Flange Manila, ANSI B16.5 Class 900 Forged Flanges Cebu City, ANSI B16.5 900 LBS Pipe Flange Davao City, 900 LB Plate Flange Puerto Princesa, AWWA Class 900 Flanges Manufacturer in Baguio.

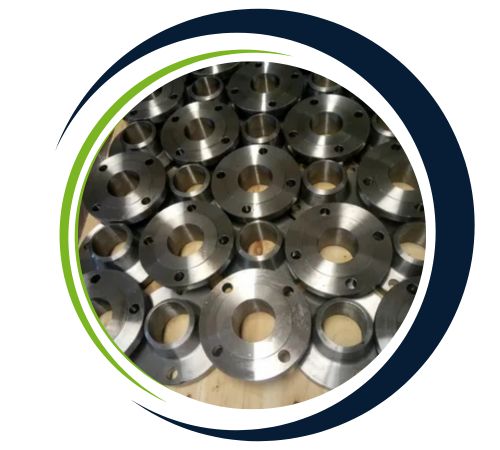

900 LBS Flanges

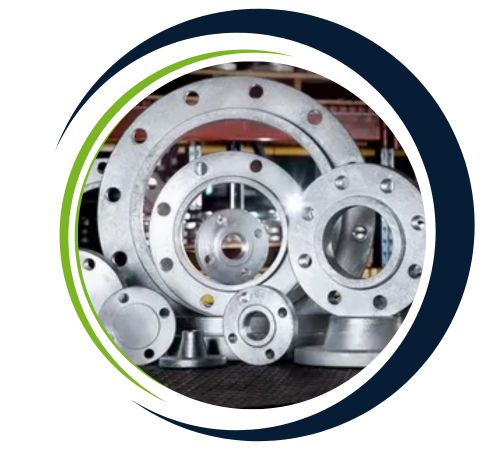

Raised Face Class 900 Flanges

ANSI B16.5 Class 900 Flange

Typically, ANSI B16.5 Class 900 Flanges are made from top-notch materials like carbon steel, stainless steel, or alloy steel, which provide excellent mechanical strength and corrosion resistance. They’re built to handle pressures of up to 2250 psi at room temperature, showcasing high tensile and yield strength. These flanges are tough, durable, and resistant to temperature changes, making them perfect for high-pressure applications. The combination of strong mechanical properties and a robust design ensures secure connections and long-lasting reliability in critical piping systems.

900 LBS Flanges Stockist in Philippines, 900 LBS Flanges Manufacturer in United kingdom, 900 LBS Flanges Stockist in Manila, 900 LBS Flanges Supplier in Cebu City, 900 LBS Flanges Supplier in Davao City, 900 LBS Flanges Manufacturer in Puerto Princesa, ANSI B16.5 Class 900 Flange Baguio.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

ANSI B16.5 Class 900 Flanges Specification

Size Range	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Standards	B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges.
DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Main Types	Threaded / Forged / Plate /Screwed
Flange supporting material	Ring Joint, Gasket, Flange Bolts
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Most Common Types	Slip-On Ring Flange (SORF), Class 900 Weld Neck Ring Flange (WNRF), Class 900 Threaded Ring Flange, Class 900 Socket Weld Ring Flange (SWRF), Class 900 Blind Ring Flange (BLRF), Class 900 Ring Type Joint Flange (RTJF), Class 900 Lap Joint Ring Flange (LJRF), Class 900
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 900 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean
Specialized Manufacturer of	Class 900 Blind Flanges Class 900 Large Diameter Flange Class 900 Table Flanges Class 900 Sorf Flange Class 900 Socketweld Flanges Class 900 Threaded Flanges Class 900 Weld Neck Flanges Class 900 Slip-On Flanges Class 900 Loose Flanges Class 900 AS 4087 Water Flanges Class 900 Lap Joint Flanges Class 900 Plate Flanges Class 900 Orifice Flanges
Standard	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 German (DIN) American standard (ANSI) Any other specilised flanges British standard (BS) The other standard : AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638

ANSI B16.5 Class 900 Flanges Dimensions

Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Overall Length			Bolt Circle	No. and Size of Holes		O.D. of raised face
Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Welding neck	Slip-on & socket welding	Lap Joint	Bolt Circle	No. and Size of Holes		O.D. of raised face
	O	Q	Y			Diam.	No.	dia.	R
1/2	95	14.3	52.4	22.2	22.2	66.5	4	15	35
3/4	117	15.9	57.2	25.4	25.4	82.5	4	19	43
1	124	17.5	61.9	27.0	27.0	89.0	4	19	51
1-1/4	133	20.7	66.7	28.6	28.6	98.5	4	19	64
1-1/2	156	22.3	69.8	31.8	31.8	114.5	4	22	73
2	165	25.4	73.0	36.5	36.5	127.0	8	19	92
2-1/2	190	28.6	79.4	41.3	41.3	149.0	8	22	105
3	210	31.8	82.6	46.0	46.0	168.0	8	22	127
3-1/2	229	35.0	85.7	49.2	49.2	184.0	8	25	140
4	273	38.1	101.6	54.0	54.0	216.0	8	25	157
5	330	44.5	114.3	60.3	60.3	266.5	8	29	186
6	356	47.7	117.5	66.7	66.7	292.0	12	29	216
8	419	55.6	133.4	76.2	76.2	349.0	12	32	270
10	508	63.5	152.4	85.7	115.1	432.0	16	85	324
12	559	66.7	155.6	92.1	111.1	489.0	20	35	381
14	603	69.9	165.1	93.7	117.5	527.0	20	38	413
16	686	76.2	177.8	106.4	127.0	603.0	20	41	470
18	743	82.6	184.2	117.6	139.7	654.0	20	45	533
20	813	88.9	190.5	127.0	165.1	724.0	24	45	584
24	940	101.6	203.2	139.7	184.2	838.0	24	51	692

You’ll find ANSI B16.5 Class 900 Flanges widely used in sectors such as oil and gas, petrochemical, power generation, shipbuilding, and water treatment. They’re ideal for high-pressure piping systems where tight seals and mechanical strength are crucial. These flanges connect valves, pumps, and pipelines, ensuring safe and efficient fluid flow. Their capability to manage elevated pressures and temperatures makes them suitable for refineries, offshore platforms, and chemical plants. ANSI B16.5 Class 900 Flanges deliver dependable performance, corrosion resistance, and extended service life in demanding industrial settings.

Raised Face Class 900 Flanges Philippines, 900 LBS Flange United kingdom, ANSI B16.5 Class 900 Flange Manila, ANSI B16.5 Class 900 Forged Flanges Cebu City, ANSI B16.5 900 LBS Pipe Flange Davao City, 900 LB Plate Flange Puerto Princesa, AWWA Class 900 Flanges Manufacturer in Baguio.

Types of ANSI B16.5 Class 900 Flanges

Are Custom Sizes Available for ANSI B16.5 Class 900 Flanges?

Yes, we offer custom sizes for ANSI B16.5 Class 900 Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
