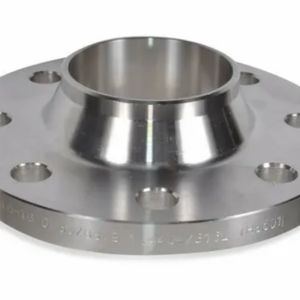

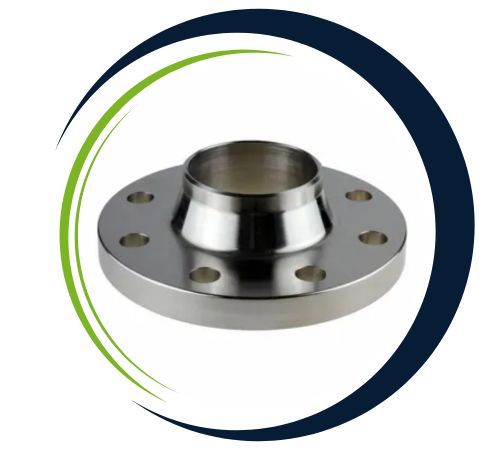

Ting Flanges, a well-known manufacturer and supplier located in Manila, Philippines, focuses on crafting top-notch Stainless Steel Weld Neck Flanges that are built for durability and precision. These flanges are designed to deliver exceptional strength and reliability, especially in high-pressure piping systems. Thanks to cutting-edge manufacturing techniques and rigorous quality control, Ting Flanges guarantees impressive dimensional accuracy, a smooth finish, and resistance to corrosion. Their Weld Neck Flanges come in a variety of sizes and pressure ratings, making them suitable for a wide range of industrial needs. The company’s dedication to excellence has earned them a reputation as a trusted choice across various industries in the Philippines and beyond.
When it comes to composition, Stainless Steel Weld Neck Flanges are primarily made up of chromium, nickel, and molybdenum, which boost their corrosion resistance, tensile strength, and overall durability. They showcase high mechanical strength, remarkable toughness, and excellent fatigue resistance, even under extreme pressure and temperature conditions. With yield strengths ranging from 205 to 515 MPa and tensile strengths between 515 and 860 MPa, these flanges consistently deliver outstanding performance. Their smooth weldable neck and stable structure make them perfect for critical applications that demand structural integrity and leak-proof connections.
| Specification Of : | Stainless Steel Weld Neck Flange |
|---|---|
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Manufacturer Of Standard Dimensions | EN-1092 Flange, ASME B16.48 Flange, API605 Flange, BS4504 Flange, EN1092 Flange, UNI Flange, ISO Flange, API7S-43 Flange, ANSI/ASME B16.5 Flange, API7S-15 Flange, MSS S44 Flange, IS 2062 Flange, ASME B16.36 Flange, DIN Flange, AWWA C207 Flange, B16.47 Series A & B Flange, BS1560-3.1 Flange, ISO70051 Flange, API Flange. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Wrought Iron, Inconel, Mild Steel, Stainless Steel, Hastelloy, Cast Iron, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Size | (1/2″) To (48″) |
| Manufacturing Process |
|
| Other Type Of Flange | Forged/ Plate/ Threaded |
| Application | Oil And Gas Industry Power Plants Industry Food Processing And Manufacturing Waterworks Systems Fossil Fuel Power Plants Nuclear Power Application Municipal Pipe Systems |
Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Stainless Steel Weld Neck Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
These Stainless Steel Weld Neck Flanges find their place in various industries, including oil and gas, chemical processing, petrochemical, power generation, and shipbuilding. They are particularly suited for applications that involve high-pressure and high-temperature fluids, where strong, leak-free connections are a must. Commonly used in pipelines, heat exchangers, and pressure vessels, these flanges provide durability and stability even in challenging conditions. Their ability to endure stress, vibration, and thermal expansion makes them ideal for long-term use. Plus, their resistance to corrosion and oxidation helps extend their lifespan in harsh and corrosive environments.
| ASME/ANSI B 16.5 | Welding Neck Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Stainless Steel Weld Neck Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
