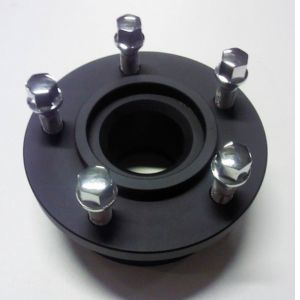

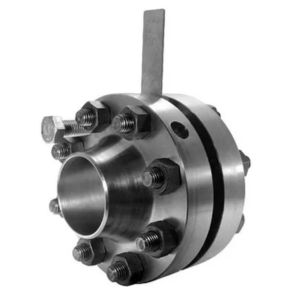

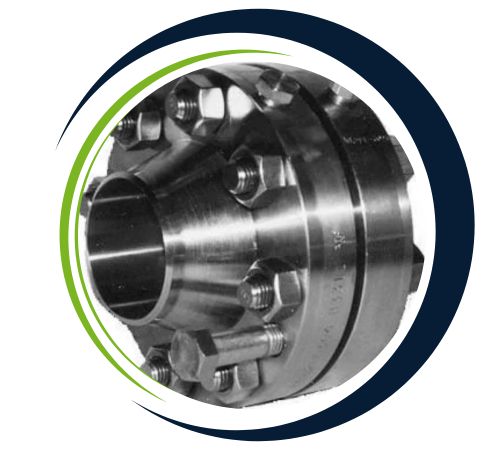

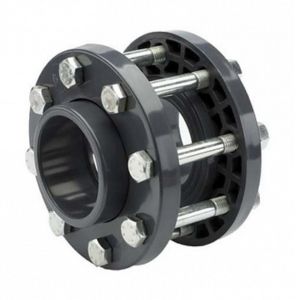

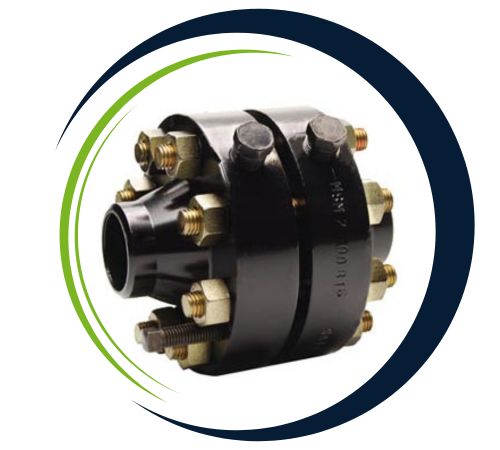

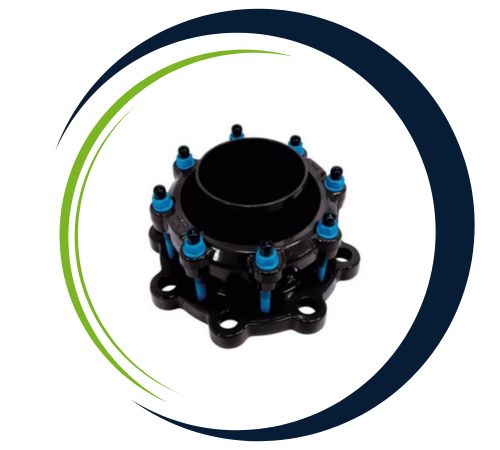

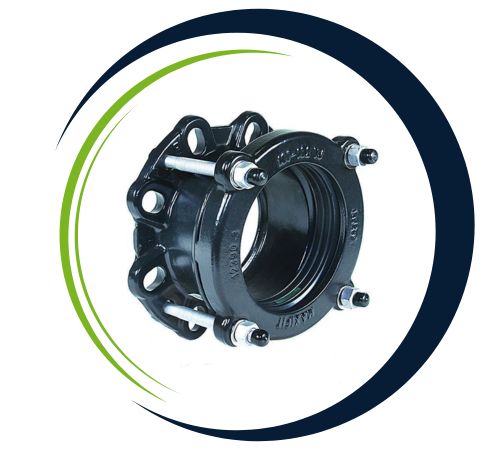

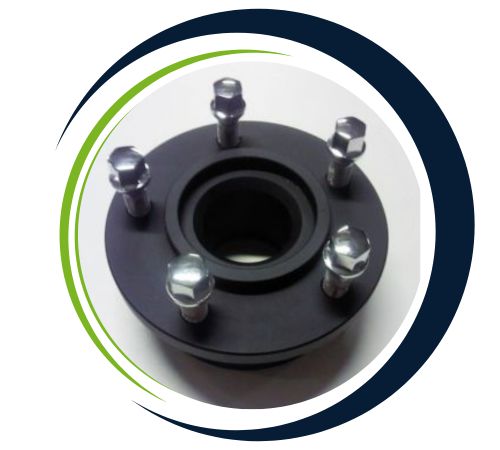

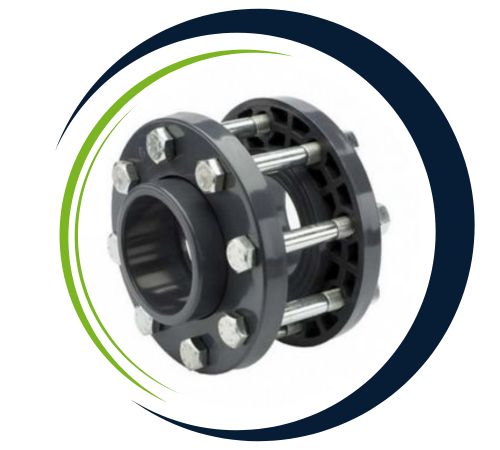

Ting Flanges, one of the well-established manufacturers and suppliers in Manila, Philippines, is known to create high-grade Carbon Steel Orifice Flanges that ensure precise flow measurement and trustworthy performance. Applying cutting-edge manufacturing technology and rigorous quality control, Ting Flanges ensures every product provides superior strength, durability, and dimensional accuracy. These flanges are perfect for industries demanding effective flow control and pressure monitoring. With a focus on innovation, quality, and customer satisfaction, Ting Flanges remains a go-to supplier of high-quality carbon steel flange solutions in the Philippines and other countries.
Carbon Steel Orifice Flanges consist mainly of carbon, manganese, phosphorus, sulfur, and silicon, while trace elements strengthen them and make them easily machinable. They have excellent mechanical properties with high tensile and yield strength, good hardness, and high impact resistance. They are resistant to high pressure and temperature fluctuations and can be applied in challenging industrial conditions. Their sturdy microstructure maintains dimensional stability, and excellent weldability and machinability enable precise manufacturing. They provide consistent performance and reliability in flow measuring and control systems.
Ting Flanges, a premier supplier in Manila, Philippines, specializes in high-quality Carbon Steel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Carbon Steel Orifice Flanges Specifications: ASTM A105/ ASME SA105
Carbon Steel Orifice Flanges Dimensions: ANSI/ASME B16.36, Series A & B, BS4504, BS 10, EN-1092, DIN, etc.
Carbon Steel Orifice Flanges Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Carbon Steel Orifice Flanges : Size :1/2″ (15 NB) to 48″ (1200NB)
Carbon Steel Orifice Flanges Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Orifice Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Hub OD | Weld Neck OD | Welding Neck Length | RF Dia. | RF Height | PCD | Orifice Hole dia | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | F | G | H | I | ||||||||
| 1 | 25 | 125 | 36.6 | 54 | 33.4 | 81 | 50.8 | 2 | 88.9 | 6.4 | 4 | 5/8 | 125 | 3/4 | M16 | 4.5 |
| 1 1/2 | 40 | 155 | 36.6 | 70 | 48.3 | 84 | 73 | 2 | 114.3 | 6.4 | 4 | 3/4 | 135 | 7/8 | M20 | 6.5 |
| 2 | 50 | 165 | 36.6 | 84 | 60.3 | 84 | 92.1 | 2 | 127 | 6.4 | 8 | 5/8 | 125 | 3/4 | M16 | 7 |
| 2 1/2 | 65 | 190 | 36.6 | 100 | 73 | 87 | 104.8 | 2 | 149.2 | 6.4 | 8 | 3/4 | 135 | 7/8 | M20 | 7.5 |
| 3 | 80 | 210 | 36.6 | 117 | 88.9 | 87 | 127 | 2 | 168.3 | 9.5 | 8 | 3/4 | 135 | 7/8 | M20 | 9.4 |
| 4 | 100 | 255 | 36.6 | 146 | 114.3 | 90 | 157.2 | 2 | 200 | 12.7 | 8 | 3/4 | 135 | 7/8 | M20 | 13.2 |
| 6 | 150 | 320 | 36.6 | 206 | 168.3 | 98 | 215.9 | 2 | 269.9 | 12.7 | 12 | 3/4 | 135 | 7/8 | M20 | 14.6 |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 12.7 | 12 | 7/8 | 145 | 1 | M24 | 30 |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.3 | 12.7 | 16 | 1 | 165 | 1 1/8 | M27 | 41 |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 12.7 | 16 | 1 1/8 | 180 | 1 1/4 | M30 | 62 |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 12.7 | 20 | 1 1/8 | 185 | 1 1/4 | M30 | 84 |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 12.7 | 20 | 1 1/4 | 195 | 1 3/8 | M33 | 111 |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 12.7 | 24 | 1 1/4 | 205 | 1 3/8 | M33 | 138 |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 12.7 | 24 | 1 1/4 | 215 | 1 3/8 | M33 | 171 |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 12.7 | 24 | 1 1/2 | 240 | 1 5/8 | M39 | 247 |
Carbon Steel Orifice Flanges are among the most commonly used in industries like oil and gas, petrochemical, power generation, water treatment, and chemical processing. They are used mainly in piping systems to monitor fluid flow rates with the help of orifice plates placed between flange pairs. These flanges are responsible for taking proper pressure drop reading and maintenance as well as inspection. Because of their mechanical stress resistance and strong tolerance, they can be used in high-pressure and high-temperature operations. Applications include pipelines, refineries, boilers, and process control systems where monitoring and regulation of precise flow is necessary.
Yes, we offer custom sizes for Carbon Steel Orifice Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
