Ting Flanges, Manila, Philippines, is a prominent manufacturer and exporter of high-grade Copper Nickel 70/30 Flanges. Renowned for precise engineering, state-of-the-art manufacturing techniques, and rigid compliance with international standards, Ting Flanges provides products that guarantee superior reliability and performance. The Copper Nickel 70/30 Flanges are formulated to provide superior corrosion resistance, strength, and durability, which makes them optimal for high-pressure marine and industrial applications. With quality and innovation in mind, Ting Flanges offers premium flange solutions to the varied needs of clients in the Philippines and global markets.
Copper Nickel 70/30 Flanges consist of about 70% copper and 30% nickel with minor proportions of iron and manganese for added strength and corrosion resistance. They have a tensile strength of approximately 340–380 MPa and excellent seawater resistance, biofouling, and stress corrosion cracking resistance. These flanges remain stable and mechanically sound under extreme temperatures and pressures. Their excellent weldability, ductility, and toughness properties make them ideal for demanding marine and industrial applications with long-lasting performance and reliability demands.
| Size | : | ½” to 12″ |
| Specification | : | ASTM / ASME SB 61 / 62 / 151 / 152. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Class | : | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN. |
| Dimensions | : | ANSI/ASME B16.5, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Grades | : | UNS C71500 (CU -NI- 70/30) |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Copper Nickel 70/30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 0.323 lb/in3 at 68 F | 50000 psi | 20000 psi | 30 % |

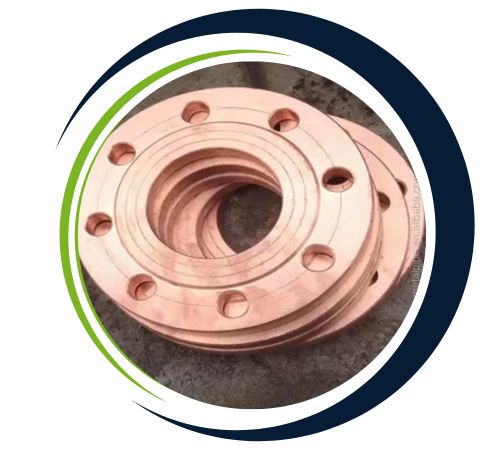

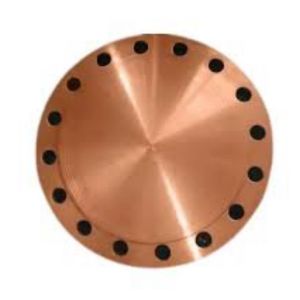

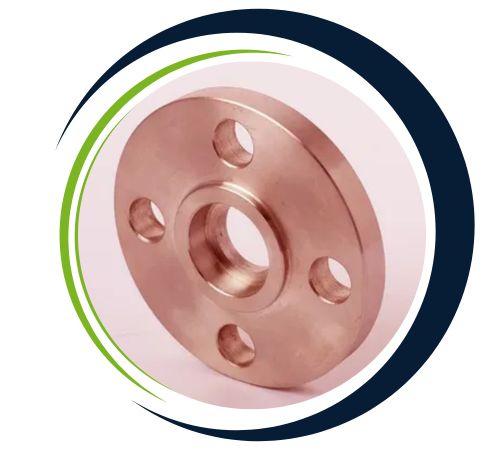

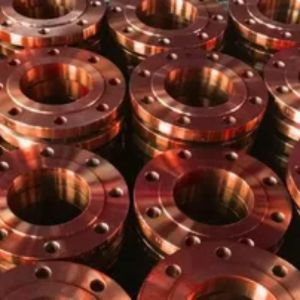

Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Copper Nickel 70/30 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| STANDARD | WERKSTOFF NR. | UNS |
| Copper Nickel 70/30 | 2.0882 | N71500 |
Copper Nickel 70/30 Flanges are widely used in marine, offshore, and desalination applications because of their high resistance to seawater corrosion. They can be used in shipbuilding, heat exchangers, condensers, and cooling systems. They also find uses in oil refineries, power plants, and chemical processing plants where superior corrosion resistance is paramount. Their strength, resistance, and anti-fouling characteristics render them ideal for use in applications where there is prolonged exposure to saline or corrosive conditions, providing effective and lasting service within harsh operating environments.
Yes, we offer custom sizes for Copper Nickel 70/30 Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
