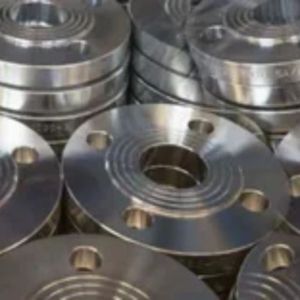

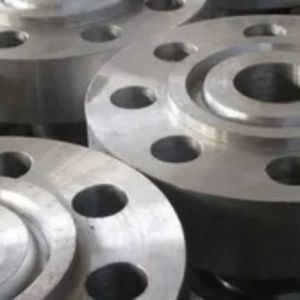

Ting Flanges, a reputable manufacturer and supplier located in Manila, Philippines, focuses on crafting top-notch DIN 2573 PN6 Slip On Flanges for clients in Midland, UK. These flanges are expertly engineered to deliver outstanding performance, durability, and hassle-free installation in low-pressure piping systems. Using cutting-edge technology and high-quality materials, Ting Flanges ensures that their products meet international standards. Their DIN 2573 PN6 Slip On Flanges are perfect for industries that need dependable joint connections, such as oil and gas, water treatment, power generation, and chemical processing, guaranteeing leak-proof and long-lasting operations.
Made from carbon steel, stainless steel, or alloy steel, DIN 2573 PN6 Slip On Flanges strike a great balance between strength and corrosion resistance. They boast tensile strength ranging from 400–600 MPa and yield strength between 200–350 MPa. Lightweight and designed for low-pressure environments, these flanges ensure excellent mechanical performance, precise dimensions, and easy welding. Their sturdy design and reliable sealing make them suitable for various moderate temperature and pressure applications.
Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of DIN 2573 PN6 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Germany standard flange DIN 2573 for soldering or welding Nominal Pressure 6 | |||||||||||
| Pipe | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||||
| Rated Diameter | d1 | d5 | D | b | c | k | Holes | Thread | d2 | Kg | |
| ISO Series 1 | DIN Series 2 | ||||||||||
| 15 | – | 20 | 21 | 80 | 12 | 5 | 55 | 4 | M 10 | 11 | 0,41 |
| 21,3 | – | 22 | |||||||||
| 20 | – | 25 | 26 | 90 | 14 | 5 | 65 | 4 | M 10 | 11 | 0,60 |
| 26,9 | – | 27,6 | |||||||||
| 25 | – | 30 | 31 | 100 | 14 | 5 | 75 | 4 | M 10 | 11 | 0,74 |
| 33,7 | – | 34,4 | |||||||||
| 32 | – | 38 | 39 | 120 | 16 | 5 | 90 | 4 | M 12 | 14 | 1,19 |
| 42,4 | – | 43,1 | |||||||||
| 40 | – | 44,5 | 45,5 | 130 | 16 | 5 | 100 | 4 | M 12 | 14 | 1,39 |
| 48,3 | – | 49 | |||||||||
| 50 | – | 57 | 58,1 | 140 | 16 | 6 | 110 | 4 | M 12 | 14 | 1,53 |
| 60,3 | – | 61,1 | |||||||||
| 65 | 76,1 | – | 77,1 | 160 | 16 | 6 | 130 | 4 | M 12 | 14 | 1,89 |
| 80 | 88,9 | – | 90,3 | 190 | 18 | 7 | 150 | 4 | M 16 | 18 | 2,98 |
| 100 | – | 108 | 109,6 | 210 | 18 | 7 | 170 | 4 | M 16 | 18 | 3,46 |
| 114,3 | – | 115,9 | |||||||||
| 125 | – | 133 | 134,8 | 240 | 20 | 7 | 200 | 8 | M 16 | 18 | 4,60 |
| 139,7 | – | 141,6 | |||||||||
| 150 | – | 159 | 161,1 | 265 | 20 | 7 | 225 | 8 | M 16 | 18 | 5,22 |
| 168,3 | – | 170,5 | |||||||||
| 200 | 219,1 | – | 221,8 | 320 | 22 | 7 | 280 | 8 | M 16 | 18 | 7,15 |
| 250 | – | 267 | 270,2 | 375 | 24 | 7 | 335 | 12 | M 16 | 18 | 9,61 |
| 273 | – | 276,2 | |||||||||
| 300 | 323,9 | – | 327,6 | 440 | 24 | 7 | 395 | 12 | M 20 | 22 | 12,60 |
| 350 | 355,6 | – | 359,7 | 490 | 26 | 7 | 445 | 12 | M 20 | 22 | 15,60 |
| – | 368 | 372,2 | |||||||||
| 400 | 406,4 | – | 411 | 540 | 28 | 7 | 495 | 16 | M 20 | 22 | 18,40 |
| – | 419 | 423,7 | |||||||||
| (450)* | 457 | – | 462,5 | 595 | 30 | 7 | 550 | 16 | M 20 | 22 | 21,40 |
| 500 | 508 | – | 531,6 | 645 | 30 | 7 | 600 | 20 | M 20 | 22 | 24,60 |
You’ll find DIN 2573 PN6 Slip On Flanges commonly used in sectors like water supply, wastewater treatment, chemical plants, and low-pressure steam systems. They offer a cost-effective way to connect pipes and fittings, making alignment and maintenance a breeze. These flanges are particularly well-suited for low-pressure pipelines where quick assembly and disassembly are crucial. Their versatility and compatibility with different materials make them ideal for transporting non-corrosive and mild fluids, ensuring reliable joint integrity and operational efficiency across a range of industrial and utility systems.
Yes, we offer custom sizes for DIN 2573 PN6 Slip On Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
