Ting Flanges is a company based in Manila, Philippines, that is known for the manufacture and supply of top-notch Duplex Steel Flanges 2205. It is a precision engineering company that employs cutting-edge technology and adheres to international standards of quality. The flanges that are made by Ting Flanges from duplex stainless steel are of great strength, can withstand corrosion, and have a long-lasting life. By focusing on innovation, reliability, and customer satisfaction, Ting Flanges is the provider of flange solutions that are not only durable but also efficient to the industrial sector which extends across the Philippines and the rest of the world. It thus ensures durable performance even under harsh and high-pressure conditions in the industry.
Duplex Steel Flanges 2205 are mainly made of chromium (22%), nickel (5–6%), and molybdenum (3%), and have a balanced ferritic-austenitic microstructure. The material is almost immune to pitting, crevice corrosion, and chloride stress-corrosion cracking. The tensile strength of these flanges is between 620 and 850 MPa and their yield strength is about 450–550 MPa. Such flanges retain excellent toughness, weldability, and stability even under conditions of extreme pressure and temperature, thus they are exceptionally mechanically strong and corrosion-resistant for use in tough industrial environments.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 25Bar 16Bar 40Bar |
| EN | 25Bar 6Bar 10Bar 16Bar 40Bar |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Male-Female (LMF), Small Tongue, Large Tongue & Groove, Groove |
| Uses & application |
|
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Coating | Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Anti-rust Paint, Yellow Transparent |
| Most common types | Threaded / Screwed / Forged / Plate |
| Equipment | Pushing Machine, Press machine, electric bevelling machine, Bending machine, Sand-blasting machine etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test | Direct-reading Spectrograph, UI trasonic flaw detector, Hydrostatic testing machine, X-ray detector, Magnetic particle detector |
| Standards | API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, API7S-15, API7S-43, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Export to | Dubai, Singapore, Indonesia, Ukraine, Korea, Iran, India, Saudi Arabia, Thailand, Egypt, Oman, Spain, Canada, USA, Ireland, Brazil, Peru, etc |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |

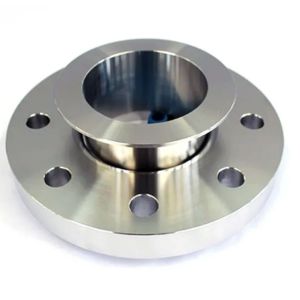

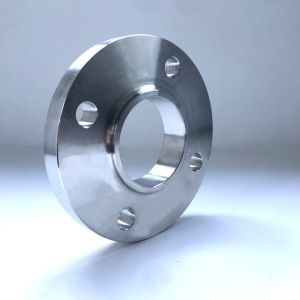

Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Duplex Steel Flanges 2205, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Duplex Steel Flanges 2205 are found in usage in the different industries like oil and gas, petrochemical, marine, desalination, and power generation. They are the best choice to link pipes, valves, and pumps in the systems that are subjected to corrosive fluids and harsh conditions. The typical applications are offshore drilling platforms, chemical processing plants, heat exchangers, and seawater handling systems. Their strength-to-weight ratio is high and they are resistant to corrosion, which makes them perfect for either onshore or offshore projects. Duplex Steel Flanges 2205 are the ones that guarantee leak-proof, durable, and reliable connections, thereby ensuring the efficiency and safety of the industrial process for a very long time to come.
| C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C ( J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 2205 | 782 | 190 | 13.7 | 14.2 | – | 19 | – | 418 | 850 |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Yes, we offer custom sizes for Duplex Steel Flanges 2205 to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
