EN 1092-1 Type 05 Flanges Manufacturer and Supplier In Manila, Philippines

Ting Flanges, based in Manila, Philippines, has earned a solid reputation as a reliable manufacturer and supplier of top-notch EN 1092-1 Type 05 Flanges. They cater to clients in Midland, UK, and beyond, making their mark in international markets. Renowned for their precision engineering and durability, Ting Flanges adheres strictly to European standards, ensuring their products deliver exceptional strength and performance, even in the toughest industrial settings. Their EN 1092-1 Type 05 Flanges guarantee dependable, leak-proof connections across various piping systems. With a strong focus on quality, innovation, and customer satisfaction, Ting Flanges remains a prominent player in the global flange manufacturing scene.

EN 1092-1 Type 05 PN10 Flange Philippines, EN 1092-1 Type 05 Loose Flange United kingdom, EN 1092-1 Type 05 Plate Flange Manila, EN 1092-1 Type 05 Forged Flanges Cebu City, Raised Face EN 1092-1 Type 05 Flanges Davao City, EN 1092-1 Type 05 Flanges Manufacturer in Puerto Princesa, EN 1092-1 Type 05 Flanges Baguio.

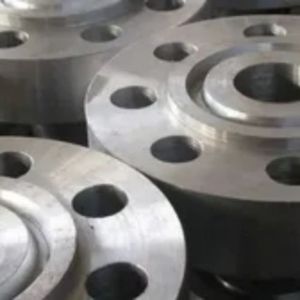

EN 1092-1 Type 05 Flanges

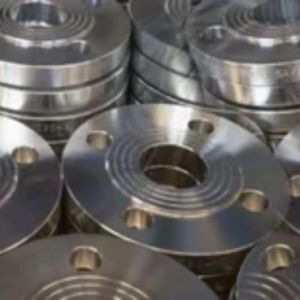

EN 1092-1 Type 05 PN10 Flange

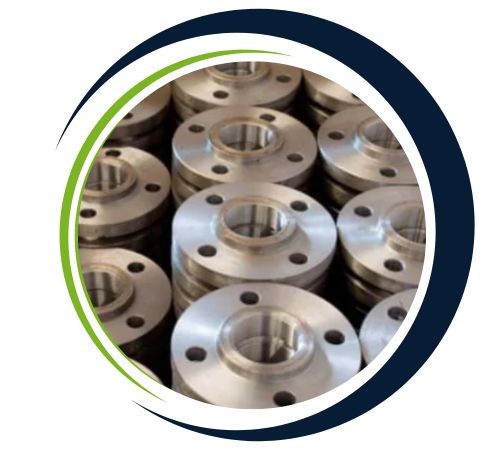

EN 1092-1 Type 05 Loose Flange

When it comes to manufacturing EN 1092-1 Type 05 Flanges, high-grade carbon steel, stainless steel, or alloy steel is typically used, depending on the specific application needs. These flanges boast impressive mechanical properties, featuring a tensile strength ranging from 400 to 700 MPa and a yield strength between 200 and 450 MPa. They are designed to resist corrosion, heat, and pressure, ensuring they perform consistently and last long. The sturdy construction and precise dimensions of these flanges make them perfect for critical industrial and mechanical piping systems.

EN 1092-1 Type 05 Forged Flanges Philippines, PED Certified EN 1092-1 Type 05 Blind Flanges Manufacturer United kingdom, EN 1092-1 Type 05 Threaded Flanges Manila, EN 1092-1 Type 05 Slip on Flanges Stockholder Cebu City, EN 1092-1 Type 05 Raised Face Flange Davao City, EN 1092-1 Type 05 PN40 Flange Manufacturer in Puerto Princesa, EN 1092-1 Type 05 Welding Neck Flange Dealer in Baguio.

Largest EN 1092-1 Type 05 Flanges in Manila, Philippines

Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of EN 1092-1 Type 05 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

EN 1092-1 Type 05 Flanges Specification

Size	(1/2″) To (48″)
Pressure	PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
Size Of Bore Diameter Flange	NPS ≤ 10
Standard Dimensions	EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API.
Minimum Pressure	150# To 2500#
Flange Face Type Manufacturer	Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face.
Top Six Type Of Flange	Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange
Standard Materials	Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel.
Thickness Length	NPS ≤ 18
Manufacturing Process	Forged/ Machined/ Heat Treated
Other Type Of Flange	Forged/ Plate/ Threaded

EN 1092-1 Type 05 Flange Dimensions

DN	D i a m e t e r			Bolts		Thickness	Tollerance	Surface	Surface		Net
	outside	bolt	bolt	Nr	Type		allowed on	for gasket			weight
		circle	holes				thickness	thigtness
	D	K	L			C1	+/ – mm	d1	f1	Gmax	kg
15	95	65	14	4	M12	16	1	45	2		0,67
20	105	75	14	4	M12	18	1	58	2		0,94
25	115	85	14	4	M12	18	1	68	2		1,11
32	140	100	18	4	M16	18	1	78	2		1,82
40	150	110	18	4	M16	18	1	88	3		2,08
50	165	125	18	4	M16	18	1	102	3		2,59
65	185	145	18	4;8	M16	18	1	122	3	55	3,32
80	200	160	18	8	M16	20	1,5	138	3	70	3,60
100	220	180	18	8	M16	20	1,5	158	3	90	4,39
125	250	210	18	8	M16	22	1,5	188	3	115	5,41
150	285	240	22	8	M20	22	1,5	212	3	140	7,14
200	340	295	22	12	M20	24	1,5	268	3	190	9,73
250	405	355	26	12	M24	26	1,5	320	3	235	14,21
300	460	410	26	12	M24	28	1,5	378	4	285	18,99
350	520	470	26	16	M24	30	1,5	438	4	330	28,13
400	580	525	30	16	M27	32	1,5	490	4	380	35,86
450	640	585	30	20	M27	40	1,5	550	4	425	46,13
500	715	650	33	20	M30	44	1,5	610	4	475	64,03
600	840	770	36	20	M33	54	2	725	5	575	96,05
700	910	840	36	24	M33	58	2	795	5	670	80,64
800	1025	950	39	24	M36	62	2	900	5	770	102,58
900	1125	1050	39	28	M36	64	2	1000	5	860	117,57
1000	1255	1170	42	28	M39	68	2	1115	5	960	149,58
1200	1485	1390	48	32	M45	*	2	1330	5	1160

EN1092-1 TYPE05 PN16 BLIND FLANGE DIMENSIONS

Diameter	Flange			Screws			Weight (7,85 Kg/dm3)
Diameter	k	D	b	d2	Thread	Bolt holes	KG
15	65	95	16	14	M12	4	0,813
20	75	105	18	14	M12	4	1,140
25	85	115	18	14	M12	4	1,380
32	100	140	18	18	M16	4	2,030
40	110	150	18	18	M16	4	2,350
50	125	165	18	18	M16	4	2,880
65	145	185	18	18	M16	4	3,643
80	160	200	20	18	M16	8	4,610
100	180	220	20	18	M16	8	5,650
125	210	250	22	18	M16	8	8,130
150	240	285	22	22	M20	8	10,500
200	295	340	24	22	M20	12	16,200
250	355	405	26	26	M24	12	25,000
300	410	460	28	26	M24	12	35,100
350	470	520	30	26	M24	16	48,000
400	525	580	32	30	M27	16	63,500
450	585	640	40	30	M27	20	96,600
500	650	715	44	33	M30	20	133,000
600	770	840	54	36	M33	20	226,000
700	840	910	58	36	M33	24	285,000
800	950	1025	62	39	M36	24	388,000
900	1050	1125	64	39	M36	28	483,000
1000	1170	1255	68	42	M39	28	640,000

You’ll find EN 1092-1 Type 05 Flanges widely utilized in sectors like petrochemical, oil and gas, marine, water treatment, and power generation. They’re particularly suited for connecting pipelines, valves, and pumps in systems that demand high pressure and temperature resistance. Commonly found in refineries, chemical plants, steam lines, and offshore platforms, these flanges excel in corrosion resistance and sealing capabilities, ensuring durable, leak-proof connections. EN 1092-1 Type 05 Flanges deliver the strength, reliability, and performance needed for various industrial applications, even under challenging conditions.

EN 1092-1 Type 05 PN10 Flange Philippines, EN 1092-1 Type 05 Loose Flange United kingdom, EN 1092-1 Type 05 Plate Flange Manila, EN 1092-1 Type 05 Forged Flanges Cebu City, Raised Face EN 1092-1 Type 05 Flanges Davao City, EN 1092-1 Type 05 Flanges Manufacturer in Puerto Princesa, EN 1092-1 Type 05 Flanges Baguio.

Types of EN 1092-1 Type 05 Flanges

Are Custom Sizes Available for EN 1092-1 Type 05 Flanges?

Yes, we offer custom sizes for EN 1092-1 Type 05 Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
