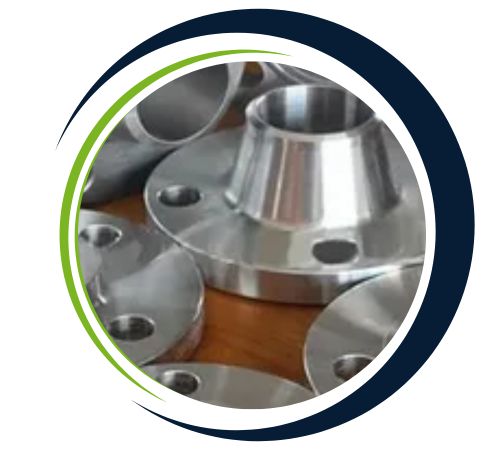

Ting Flanges is a trusted manufacturer and supplier of Inconel 600 Flanges based in Manila, Philippines. Crafted from top-notch Inconel 600 alloy, these flanges are built to endure extreme temperatures, high pressure, and harsh corrosive environments. Renowned for their outstanding resistance to oxidation and corrosion, Inconel 600 Flanges are perfect for both acidic and alkaline conditions. Ting Flanges offers a diverse selection of flange types—including weld neck, slip-on, blind, and threaded flanges—meticulously designed to meet international quality standards. These flanges promise long-lasting durability, leak-proof performance, and reliability in even the toughest industrial applications.
Inconel 600 Flanges mainly consist of nickel (at least 72%), chromium (14–17%), and iron (6–10%), along with trace amounts of manganese, silicon, and copper. This alloy provides remarkable resistance to oxidation, carburization, and chloride-ion stress corrosion cracking. The material boasts high tensile strength (approximately 655 MPa) and good yield strength, maintaining its toughness even at elevated temperatures of up to 1100°C. The unique blend of strength, thermal stability, and corrosion resistance in Inconel 600 makes it an excellent choice for high-stress and high-temperature industrial settings.
Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Inconel 600 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Standards: ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc.
Specification :ASTM B 564 / ASME SB 564
Size : ½” to 36″
Class : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Grade : Inconel (UNS N06600) Flanges, 2.4816
| Grade | Ni | Si | C | S | Mn | Cr | Fe | |
| Inconel 600 | min. | 72.0 | – | – | – | – | 14.0 | 6.0 |
| max. | – | 0.5 | 0.15 | 0.015 | 2.0 | 17.0 | 10.0 | |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % | – |
Inconel 600 Flanges find extensive use in the chemical and petrochemical industries, power generation plants, heat exchangers, marine systems, and gas turbine components. They excel in applications that involve acidic or alkaline media, high pressure, and extreme temperatures, where standard steel flanges would typically fail. These flanges create robust, leak-proof connections in pipelines and equipment that handle corrosive gases and fluids. Their durability and resistance to scaling make them ideal for furnace components and heat-treatment systems. Ting Flanges’ Inconel 600 Flanges deliver exceptional performance, reliability, and longevity in the most demanding industrial environments.
Yes, we offer custom sizes for Inconel 600 Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
