Ting Flanges, located in Manila, Philippines, has built a solid reputation as a manufacturer and supplier of top-notch JIS B2220 Flanges, catering to clients in Midland, UK, and around the globe. Renowned for their precision engineering and exceptional durability, Ting Flanges adheres to international standards, ensuring their products deliver reliable performance even in the toughest industrial settings. The JIS B2220 Flanges produced by the company are crafted with remarkable accuracy, guaranteeing secure and leak-free connections. With a strong commitment to quality assurance, innovation, and customer satisfaction, Ting Flanges has established itself as a trusted name in the stainless steel flange manufacturing sector.
Typically, JIS B2220 Flanges are made from materials like stainless steel, carbon steel, or alloy steel, depending on their intended use. Stainless steel grades such as 304 and 316, which contain 18–20% chromium and 8–12% nickel, offer outstanding corrosion resistance and strength. These flanges boast tensile strengths of around 515 MPa and yield strengths close to 205 MPa. They are designed to withstand pressure, temperature, and oxidation, ensuring they perform reliably in industrial piping systems and high-stress environments.

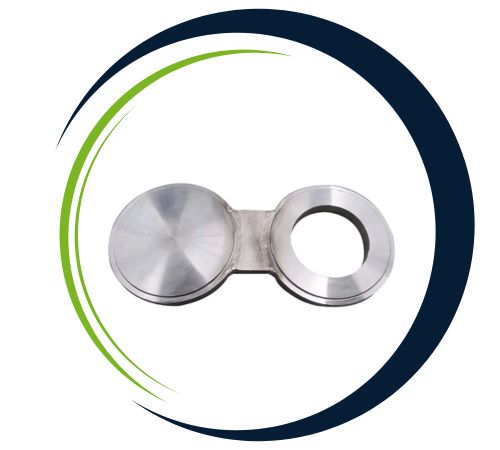

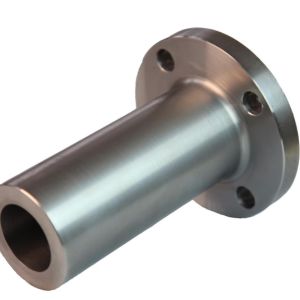

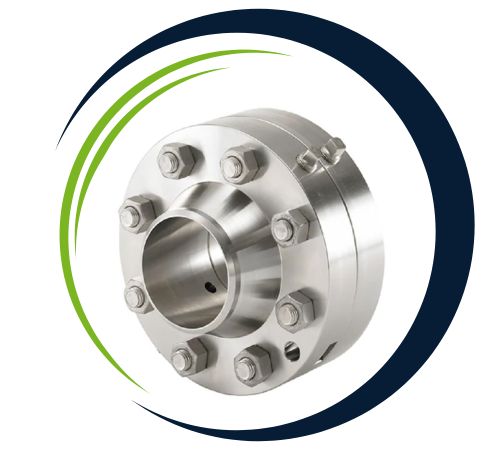

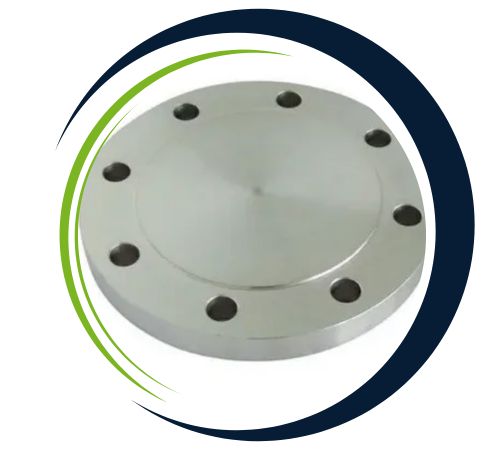

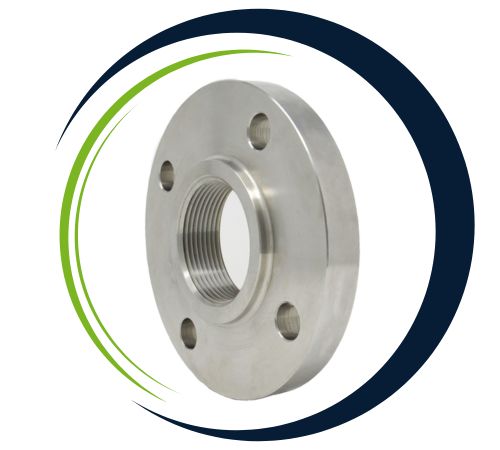

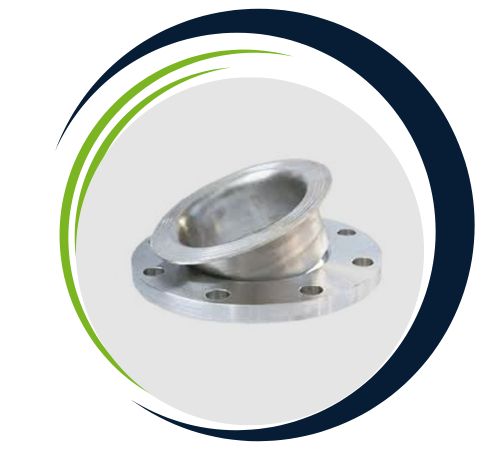

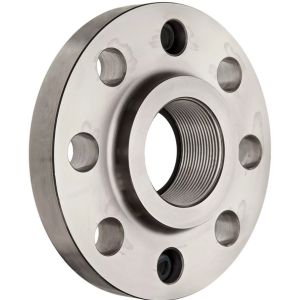

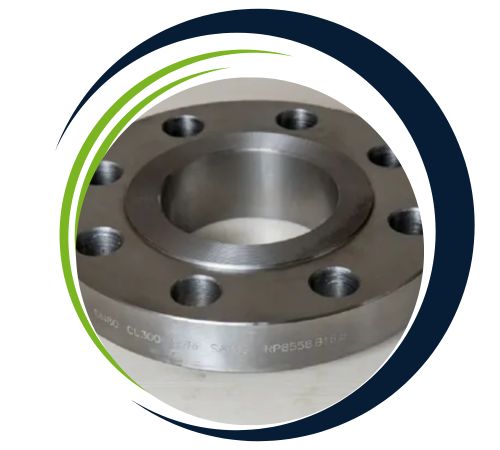

Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of JIS B2220 5K Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size | (1/2″) To (48″) |
|---|---|
| Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| JIS B2220 5k | LTB | DRILLING | |||||||
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. OF FLANGE | FLANGE THIKNESS | THIKNESS OF BLRF | BOSSED LENGTH SOH.SW LI | WN LENGTH | DIAMETER OF PITCH CIRCLE | BOLT HOLES NUMBER | DIAMETER BOLT HOLE | |
| MILLIMETER | IN. | C | T | T1 | L | L1 | PCD | # | H |
| 10 | 3/8 | 75 | 9 | 9 | 13 | 24 | 55 | 4 | 12 |
| 15 | 1/2 | 80 | 9 | 9 | 13 | 25 | 60 | 4 | 12 |
| 20 | 3/4 | 85 | 10 | 10 | 15 | 28 | 65 | 4 | 12 |
| 25 | 1 | 95 | 10 | 10 | 17 | 30 | 75 | 4 | 12 |
| 32 | 1 1/4 | 115 | 12 | 12 | 19 | 33 | 90 | 4 | 15 |
| 40 | 2 1/2 | 120 | 12 | 12 | 20 | 34 | 95 | 4 | 15 |
| 50 | 2 | 130 | 14 | 14 | 24 | 36 | 105 | 4 | 15 |
| 65 | 2 1/2 | 155 | 14 | 14 | 27 | 39 | 130 | 4 | 15 |
| 80 | 3 | 180 | 14 | 14 | 30 | 41 | 145 | 4 | 19 |
| 90 | 3 1/2 | 190 | 14 | 14 | N/A | 41 | 155 | 4 | 19 |
| 100 | 4 | 200 | 16 | 16 | 36 | 41 | 165 | 8 | 19 |
| 125 | 5 | 235 | 16 | 16 | 40 | 43 | 200 | 8 | 19 |
| 150 | 6 | 265 | 18 | 18 | 40 | 49 | 230 | 8 | 19 |
| 175 | 7 | 300 | 18 | 18 | N/A | 49 | 260 | 8 | 23 |
| 200 | 8 | 320 | 20 | 20 | N/A | 53 | 280 | 8 | 23 |
| 225 | 9 | 345 | 20 | 20 | N/A | 54 | 305 | 12 | 23 |
| 250 | 10 | 385 | 22 | 22 | N/A | 61 | 345 | 12 | 23 |
| 300 | 12 | 430 | 22 | 22 | N/A | 62 | 390 | 12 | 23 |
| 350 | 14 | 480 | 24 | 24 | N/A | 73 | 435 | 12 | 25 |
| 400 | 16 | 540 | 24 | 24 | N/A | 76 | 495 | 16 | 25 |
| 450 | 18 | 605 | 24 | 24 | 40 | 79 | 555 | 16 | 25 |
| 500 | 20 | 655 | 24 | 24 | 40 | 79 | 605 | 20 | 25 |
| 550 | 22 | 720 | 26 | 26 | 42 | 81 | 665 | 20 | 27 |
| 600 | 24 | 770 | 26 | 26 | 44 | 81 | 715 | 20 | 27 |
| 650 | 26 | 825 | 26 | 28 | 48 | 85 | 770 | 24 | 27 |
| 700 | 28 | 875 | 26 | 30 | 48 | 94 | 820 | 24 | 27 |
| 750 | 30 | 945 | 28 | 32 | 52 | 100 | 880 | 24 | 33 |
| JIS b2220 Standard | JIS b2220 Class | Diameter Of JIS | Bolt Circle Diameter | No. of Bolts | Size Of Bolt | Bolt Hole Diameter |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
JIS B2220 Flanges find applications across various industries, including petrochemical, oil and gas, power generation, marine, and water treatment. They are engineered to securely connect pipes, valves, and other equipment while maintaining leak-proof integrity and high-pressure tolerance. Their corrosion-resistant features make them perfect for both offshore and onshore applications. Additionally, these flanges are commonly used in HVAC systems, chemical processing plants, and shipbuilding. With their strength and precision, JIS B2220 Flanges guarantee dependable performance across a wide range of industrial applications.
Yes, we offer custom sizes for JIS B2220 5K Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
