Ting Flanges, Manila, Philippines, is a prominent manufacturer and exporter of premium-quality Low Temperature Carbon Steel LF2 Flanges. The company is famous for its accuracy in engineering, trustworthiness, and dedication to fulfilling global standards. With the aid of superior manufacturing methods and high-grade raw materials, Ting Flanges creates robust and high-performance LF2 flanges capable of performing smoothly in extremely low-temperature conditions. With a strong emphasis on quality assurance, prompt delivery, and customer satisfaction, Ting Flanges continues to supply industries in the Philippines and globally with reliable, durable flange solutions.
Low Temperature Carbon Steel LF2 Flanges consist mainly of carbon, manganese, phosphorus, sulfur, and silicon, which are highly resistant to mechanical strength and toughness at low temperatures. They normally provide tensile strength of around 485 MPa, yield strength of around 250 MPa, and elongation of 22%. They have high impact resistance at a temperature of as low as -50°C. LF2 flanges are renowned for their weldability, machinability, and toughness. They provide better performance under pressure and temperature variations, which makes them reliable for applications in harsh industrial settings.
|
Specifications |
ASTM A350 LF2 / ASME SA350 |
|
Dimensions |
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
|
Standard |
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
|
Size |
1/2″ to 48″ |
|
Material |
ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2 |
|
Class / Pressure |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
|
Flange Face Type |
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
|
Element |
Weight % |
|
Carbon |
0.30 max |
|
Silicon |
0.15 – 0.30 |
|
Manganese |
0.6 – 1.35 |
|
Phosphorus |
0.35 max |
|
Sulphur |
0.040 max |
|
Molybdenum |
0.12 max |
|
Copper |
0.40 max |
|
Chromium |
0.30 max |
|
Nickel |
0.40 max |
|
Vanadium |
0.08 max |
|
Niobium |
0.02 max |
|
Property |
Values |
|
Ultimate Tensile Strength |
485 – 655 N/mm2 |
|
0.2% Yield Strength |
250 N/mm2 min |
|
Elongation |
22% min |
|
Reduction of Area |
30% min |
|
Charpy Impact Toughness |
20 average / 16 min J at -46o C |
|
Hardness |
197 HB |

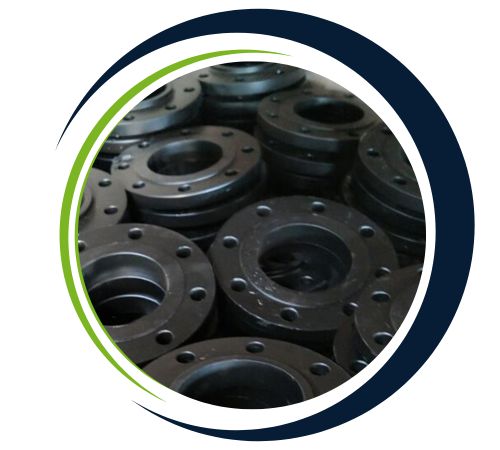

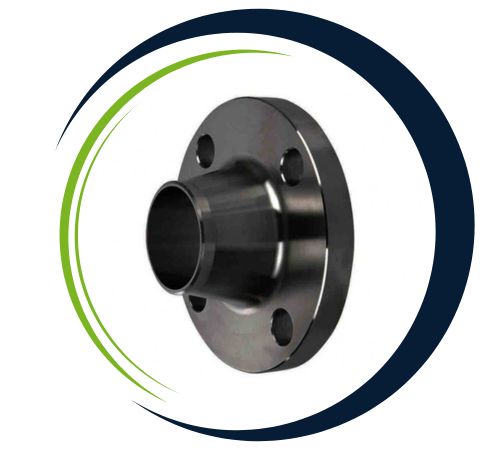

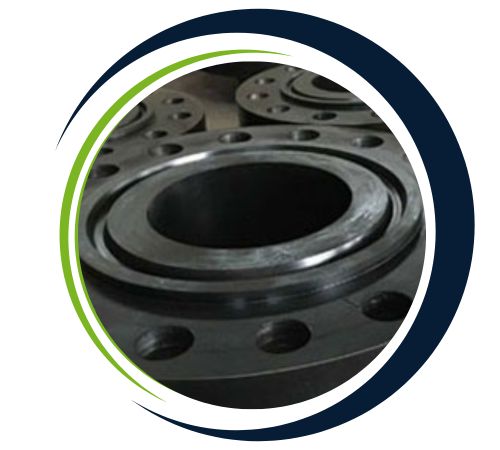

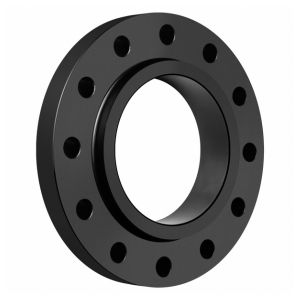

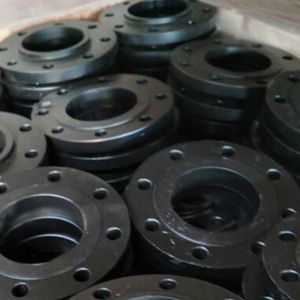

Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Low Temperature Carbon Steel LF2 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Low Temperature Carbon Steel LF2 Flanges find extensive application in oil and gas, petrochemical, power generation, and cryogenic processing industries. They are also the best option for piping systems that run in sub-zero temperatures, such as LNG plants, refrigeration systems, and offshore platforms. The flanges ensure safe, leak-tight connections withstanding pressure, temperature fluctuations, and thermal stress. They also find application in refineries, shipbuilding, and chemical transport systems. Owing to greater strength, ductility, and resistance to brittle fracture, LF2 flanges find application in low-temperature and high-pressure industries.
Yes, we offer custom sizes for Low Temperature Carbon Steel LF2 Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
